Best Whole House Sediment Water Filter Cartridges For Cleaner Plumbing And Appliances

⚡ Quick Verdict

📋 How We Evaluated

Evaluation focused on build quality, filtration performance claims, and practical maintenance features like bypass valves and pressure relief. Value considered cartridge and housing coverage, stated capacities, and how broadly each product fits common housings.

Amazon rating signals were not available, so suitability relied on specification clarity and documented certification or testing where provided.

Stages	Two-stage filtration (5-micron sediment plus CTO carbon)
Cartridge Size	10 x 4.5 inches
Connection Size	1 inch inlet/outlet
Stated Capacity	Up to 50,000 gallons (up to one year for a family of four)

What We Found

iSpring WGB21B is a two-stage whole house system that pairs a 5-micron sediment stage with a CTO carbon stage. Stage one uses a premium FP15B 5-micron polypropylene sediment filter to capture dirt, sand, silt, dust, rust, and scale particles.

Stage two uses a coconut shell carbon block CTO filter (FC15B) to reduce over 90% of chlorine and target cloudiness, tastes, and odors. The listing also claims effectiveness on VOCs like pesticides, herbicides, and industrial solvents.

The system supports 10 x 4.5 cartridges and uses 1-inch inlet and outlet ports to help maintain flow with less pressure loss. Capacity is listed up to 50,000 gallons for a family of four, with up to a year of service depending on conditions.

It ships pre-assembled with mounting hardware and includes a filter wrench and a pressure release valve.

Who It’s For

I would pick this when you want both sediment protection and better chlorine taste and odor at the point of entry. The 1-inch inlet and outlet fit full-home installations where maintaining flow is important.

If your incoming water shows rust or particulate, the first stage does the heavy lifting, and the second stage helps with chlorine odor concerns. It is also a solid option when you want more than sediment-only filtration, because the design targets downstream clogging.

Buyers should note it is not positioned as a TDS-reduction solution, so it is not a RO substitute. DIY installers may like the pre-assembly and included wrench.

Stage Focus	Iron and manganese whole house filtration plus sediment and carbon
Sediment Micron	5 microns
Inlet/Outlet	1 inch NPT
Stated Capacity	Up to 100,000 gallons (depends on water quality)

What We Found

iSpring WGB32BM is designed around iron and manganese removal with a multi-stage whole house layout. It uses a later-stage catalytic media (FM25B) intended to reduce iron and manganese levels, and the description also points to sediment and chlorine reduction plus additional contaminant handling like herbicides and industrial solvents.

The build centers on a first-stage 5-micron polypropylene sediment filtration step, followed by a coconut shell carbon block stage, with the listing describing NSF/ANSI testing via an independent third party.

The system treats main household water, with a capacity claim up to 100,000 gallons for a family of four, depending on usage. It highlights DIY-friendly installation with 1-inch NPT inlet and outlet, and it claims minimal impact on water flow up to 15 GPM.

A key limitation is that it does not target TDS reduction, even though it aims to retain minerals.

Who It’s For

I would shortlist this for well-water homes or regions where iron and manganese show up as staining in plumbing, fixtures, or laundry. It fits buyers who want whole-home treatment that includes sediment handling and chlorine taste support, along with a focus on metal reduction.

The main-supply approach helps when contamination shows up across multiple faucets at once. DIY installation and long capacity claims are appealing if you want fewer maintenance cycles. Still, I would verify your inlet iron and manganese levels, since results depend on your water chemistry.

If you specifically want TDS reduction, you would likely need RO instead.

Micron Rating	5 microns
Cartridge Size	10 x 4.5 inches
Carbon Layer	Coconut shell activated carbon
Stated Capacity	Up to 30,000 gallons (depends on water quality)

What We Found

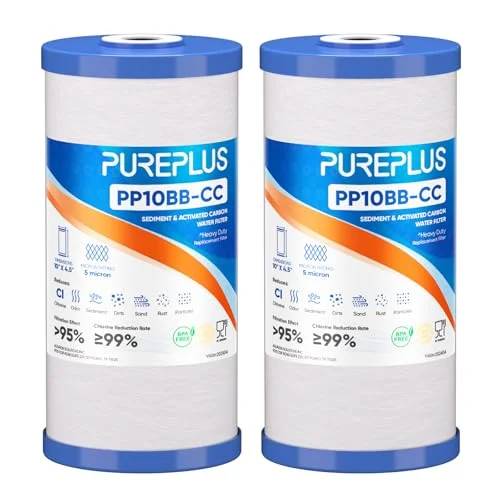

PUREPLUS brings a 5-micron 10 x 4.5 sediment and carbon cartridge for whole-house prefiltration. It uses three PP layers plus coconut shell activated carbon to target sand, rust, sediment, and color.

The listing claims up to 99% chlorine reduction and up to 30,000 gallons, with a recommended change every 3 to 6 months depending on water quality. It also lists compliance-style certification claims, including EC1935-2004 food-grade material, Australia Water Mark, REACH, and BPA-free labeling.

Compatibility is listed across numerous standard-fit housings, but performance depends on your feedwater, and well water may not match the expected results.

Who It’s For

I would shortlist this for municipal water where you want whole-home protection from sediment, plus carbon support for chlorine taste and odor. It fits if you already have a 10 x 4.5 housing and want a cartridge-only swap. The carbon layer adds comfort beyond sediment reduction.

If you run well water with lots of mud and grit, I would plan on dedicated well filtration instead.

Inlet/Outlet Size	3/4 inch
Housing Type	Clear housing with pressure relief
Certification	NSF certified
Compatible Cartridge Line	P5, CW-F, CW-MF, S1A-D (Culligan)

What We Found

Culligan WH-S200-C is a whole-house filter housing, not a cartridge itself. It is standard-duty, with a clear design that helps you watch cartridge life visually. It uses 3/4-inch inlet and outlet connections and includes a built-in pressure relief button for easier cartridge changes.

The valve-in-head bypass shut-off is meant to simplify swaps while managing flow during maintenance. The listing also notes NSF certification, and it supports multiple Culligan cartridge options including P5, CW-F, CW-MF, and S1A-D. That flexibility lets you choose the right media based on how much sediment you get.

Filtration performance still depends on the cartridge you install.

Who It’s For

This housing makes sense if you already have a compatible sediment cartridge, or you want to choose your own replacement media. I would also shortlist it when visual confirmation in a clear sump helps you keep maintenance on schedule. The 3/4-inch connections fit many main-entry setups where higher flow matters.

If you buy this, plan on purchasing cartridges separately, and confirm the cartridge family matches the housing and ports.

Micron Rating	50 microns
Cartridge Type	Spin-down sediment prefilter
Max Flow Rate	25 GPM
Stated Capacity	1-gallon spin-down sediment capacity

What We Found

iSpring WSP50ARJ-BP is a well-water prefilter built for heavier sediment, using an auto-flushing spin-down design. It includes an integrated auto-flushing module with dual power supply, offering auto, semi-auto, and manual modes through a 4-mode touchscreen.

Maintenance modes include filtration, shut-off, bypass, and backwash, using a bypass valve design that routes water through different channels. Filtration uses a 50-micron filter screen, aiming to remove larger particulates like sediment, dirt, rust, sand, floating objects, and other pollutants.

The listing highlights a jumbo spin-down capacity of 1 gallon, plus a maximum flow rate of 25 GPM. Durability claims include passing tests for pressures over 500 psi and over 100,000 water hammer tests. This unit focuses on upstream sediment management rather than fine drinking-water taste improvements.

Who It’s For

I would shortlist this for well-water homes that need robust prefiltration when sediment loads are high. The auto-flushing and touchscreen modes can reduce maintenance effort by keeping backwashing scheduled. A 25 GPM maximum flow can suit higher-demand homes and spin-down applications.

It also works upstream to protect downstream RO or whole-house cartridges. Just note the 50-micron screen targets larger particles, so it will not replace fine sediment and carbon filtration if taste is a goal. It also requires power for the touchscreen and auto-flushing module.

Housing Material	Reinforced polypropylene (food grade claims)
Port Size	1 inch NPT brass
Cartridge Compatibility	Universal standard 4.5 x 10 inch cartridges
Pressure Relief	Built-in red pressure-relief button

What We Found

SimPure DB10P is a whole-house sediment water filter housing made for 10 x 4.5 style cartridges. It uses reinforced polypropylene, intended to handle standard whole-house pressure, and it includes food-grade material claims.

The box includes setup tools like a wrench, a heavy-duty steel mounting bracket, and four screws to help speed installation. A built-in red pressure-relief button supports cartridge pressure release during changes. It also includes a 1-inch NPT brass port for DIY customization with separate cartridge choices.

The design highlights leak-resistance improvements, including thickening and raised threaded holes meant to address leakage complaints over long-term use. Compatibility covers many universal 10 x 4.5 cartridges and brand models, but cartridge purchases are separate.

Overall, DB10P is a durable housing platform, and actual filtration performance depends on the cartridge you select.

Who It’s For

I would recommend this to DIY installers who want flexibility to choose sediment or carbon cartridges based on their water. The 1-inch NPT brass port can fit many whole-house plumbing runs with a larger cartridge footprint.

It also helps if you like a more hands-on maintenance approach, since pressure relief is built in and the mounting setup is sturdy. The reinforced polypropylene and leak-focused design improvements target long-term reliability.

Just budget for cartridges separately and double-check that your exact cartridge dimensions match 10 x 4.5 compatibility and your desired micron targets.

Micron Rating	5 microns
Cartridge Size	10 x 2.5 inches
Material	100% polypropylene (food grade)
Stated Capacity	Up to 15,000-20,000 gallons (depends on water quality)

What We Found

Membrane Solutions sells a 5-micron, string-wound 10 x 2.5 sediment cartridge set in a 6-pack. It is built from food-grade 100% polypropylene, designed to be lead and BPA-free with no odor or leaching.

The listing leans on dirt-holding capacity, claiming four times the dirt capacity and double the flow rate versus typical PP sediment cartridges. It targets rust, silt, sand, and other undissolved particulates.

It claims up to 99% sediment reduction, fits most 10-inch housings, and is meant to protect downstream RO or whole-house stages. The long-life guidance lists 15,000 to 20,000 gallons, with replacement suggested at least every six months.

Who It’s For

I would pick this when a 10 x 2.5 sediment stage is already in your housing or RO setup. The 6-pack format helps if your area runs dirtier water during certain seasons. It is a good fit when you need strong pre-protection for appliances and post-filters.

If your municipal water is very clear, you may find you change sooner than the longest claims because loading varies.

Micron Rating	1 micron
Cartridge Size	2.5 x 10 inches
Certification	NSF/ANSI 42
Stated Capacity	Up to 13,000 gallons (depends on water quality)

What We Found

ICEPURE offers a 1-micron 2.5 x 10 CTO carbon whole house filter cartridge set in a 4-pack, aimed at systems that use 10 x 2.5 cartridges. The listing includes NSF/ANSI 42 certification, targeting chlorine taste and odor improvements for drinking water.

It also lists material compliance claims like EC1935-2004, Australian Water Mark, and BPA-free requirements. The product emphasizes sintering technology, claiming 99% chlorine, taste, and odor reduction, and it also claims removal of finer particles and sediment.

Capacity is listed at up to 13,000 gallons, with a suggested change every six months based on water quality. Compatibility spans many common 10 x 2.5 RO-style housings and several named brands.

It also warns that well water with mud and sand can clog the cartridge sooner, which can reduce effectiveness.

Who It’s For

I would pick this when you want tighter filtration than a typical 5-micron sediment cartridge, especially if drinking-water clarity matters. It fits whole-house RO-style housings using 10 x 2.5 CTO units, and it is positioned to reduce chlorine taste and odor at the point of entry.

The 4-pack helps keep replacement cadence steady without constant reordering. However, if your well water is very turbid, the 1-micron rating can clog quickly unless you have strong sediment prefiltration. Also, confirm your housing model accepts 2.5-inch x 10-inch CTO cartridges.

Micron Rating	5 microns
Cartridge Size	10 x 2.5 inches
Construction	Melt-blown polypropylene (food grade)
Pack Size	6 cartridges

What We Found

Aquaboon offers a 5-micron 10 x 2.5 sediment cartridge replacement option for well water and standard whole-house housings. The filter uses food-grade polypropylene with a melt-blown approach meant to avoid fiber shedding.

It uses a multi-layer design to target rust, sand, dirt, and sludge, aiming to improve clarity and reduce buildup in downstream plumbing and appliances. The listing also claims stable flow, with “no pressure drop,” and positions it for continuous use.

Installation is designed to be quick through universal sizing for most 10-inch housings. The 6-pack format is meant to reduce reordering between changes, and it claims equipment life extension by cutting harmful particle accumulation.

Who It’s For

I would shortlist this for homes running a 10 x 2.5 housing that need sediment-first prefiltration, especially with well water. The melt-blown and fiber-shedding claim can appeal when you want a cleaner filtered stream.

The universal size is helpful for routine swaps, and the 6-pack fits areas with heavier seasonal sediment. Before buying, confirm your housing dimensions. Also, take “no pressure drop” as inlet-dependent, not guaranteed for every home.

Plumbing Connection	3/4 inch
Housing Design	Clear sump for monitoring
Included Hardware	Install kit, pressure relief valve, bypass option, reminder light
Cartridge Families	FXWTC, FXWPC, FXWSC, FXUSC (filter not included)

See also  Top 10 Home Entertainment Control System

What We Found

GE’s whole house filtration system bundle is aimed at reducing sediment and “rust & more,” using a clear sump so you can visually monitor the filter. The listing says the filter cartridge is not included, but it does include an install kit and accessories for setup.

Included items cover a 3/4-inch plumbing connection, a pressure relief valve, a bypass option, a mounting bracket, and a remote filter reminder light to support cartridge change reminders. The system treats water at the supply, so it filters incoming water before it reaches plumbing and appliances.

GE states replacement every three months, which is a conservative maintenance schedule for typical sediment concerns. The system is designed around cartridge choices identified as FXWTC, FXWPC, FXWSC, and FXUSC, where those cartridges supply the filtration media performance.

Who It’s For

I would recommend this bundle if you want an install package and a more turnkey entry point for sediment filtration. The remote reminder light can help if you regularly forget filter changes. It is especially useful for homes that want supply-side protection to reduce sediment buildup in plumbing and appliances.

Just remember to source the correct GE-compatible cartridges separately. The three-month change interval may be more frequent than you need in low-sediment homes.

What to Look For Before Buying

To choose the best whole house sediment filter, start by matching micron rating to what is actually in your water. Then confirm cartridge size and housing compatibility so replacements seal correctly.

Finally, look at maintenance features like bypass and pressure relief, and compare stated capacity to what your inlet conditions realistically look like.

Check Match Micron Rating to Your Sediment Problem

Micron rating is where the trade-off happens. Higher micron catches larger particles and can last longer in very dirty water. Lower micron can improve clarity, but it clogs faster when inlet water carries mud and fine silt.

If you have well water, I would treat sediment as a first-stage priority before any fine carbon stage. Pick a rating that balances plumbing protection with realistic cartridge change intervals.

Value Prioritize Cartridge Capacity and Replace Schedule

Capacity and schedule matter more than marketing language. Check the stated gallon capacity and a replacement interval that matches typical household use. Still, treat capacity as an estimate, because water quality, flow rate, and sediment load drive real performance.

Multi-pack bundles can lower per-cartridge cost and reduce downtime during peak sediment periods. If maintenance is easier with a bypass or other convenience, that can keep filtration consistent over time. If a capacity claim looks very aggressive, plan on monitoring sooner rather than later.

Rating Use Certification and Testing Signals When Ratings Are Thin

When ratings are hard to find, I look for certification signals that match the job. If you are targeting chlorine taste and odor, certifications like NSF/ANSI 42 should line up with the claimed function. Mentions of independent third-party testing can also add confidence, especially for multi-stage systems.

For housings, NSF or similar standards generally suggest better build integrity. Even then, I would verify whether the certification refers to the media, the housing, or both, as stated.

Verify Verify Compatibility Before Buying Cartridges or Housings

Compatibility saves you from leaks and wrong-fit frustrations. Start with cartridge dimensions, then confirm the micron rating and the housing format. Many products use standard sizes like 10 x 4.5 or 10 x 2.5, but thread types and seals still vary.

Verify inlet and outlet connection sizes too, like 3/4-inch versus 1-inch. If the listing says the filter is not included, budget for the correct cartridge family before you checkout. When in doubt, I match the manufacturer model numbers in the compatibility section.

Frequently Asked Questions

What micron sediment filter works best for a whole house?

A 5-micron sediment stage is a common starting point for whole house protection because it balances filtering and lifespan for many households. If you care about finer clarity, 1-micron options can help, but they often clog faster.

For heavy well water, I would usually add a spin-down or higher-micron prefilter upstream. The best micron depends on turbidity, flow rate, and how quickly cartridges load up.

Do whole house sediment filters improve water taste and odor?

Sediment-only filters mainly improve clarity and reduce particle-related issues. Taste and odor improvements usually come from a carbon stage, such as CTO carbon. Some cartridges combine sediment and carbon, aiming at chlorine taste and odor along with reduced particulates.

If taste matters, I would prioritize products that include carbon and use the relevant certification.

How often should whole house sediment filter cartridges be replaced?

Many listings suggest every three to six months, but the real timing depends on sediment load and how much water you use. Capacity claims vary widely across products and between municipal and well water.

Clear sumps can help, but I also pay attention to signs like pressure drop and whether the system supports bypass or indicators. Early monitoring after installation can prevent both premature replacement and extended use beyond comfortable performance.

Can a sediment filter remove iron and manganese?

A standard sediment filter can reduce rust particles, but it usually does not remove dissolved iron or manganese. Systems designed for iron and manganese typically use specialized catalytic media that targets those dissolved forms.

If staining still shows up after sediment filtration, you may need a dedicated iron and manganese stage. Checking water test results helps confirm whether the problem is particulate or dissolved.

What should well water owners look for with whole house sediment filtration?

For well water, expect higher sediment loads and faster clogging with tight filters. A spin-down prefilter or a higher-capacity sediment stage upstream can reduce the burden on downstream cartridges. I would also make sure your setup includes enough pre-sediment filtration and a replacement plan that matches your inlet conditions.

If mud and sand dominate, do not rely on very fine single-stage cartridges without upstream protection.

🎯 Final Verdict

If you want whole house sediment filtration that also improves chlorine taste and odor, iSpring WGB21B is my top pick. The two-stage design combines a 5-micron sediment stage with a CTO carbon stage, and the 1-inch ports help maintain flow.

If you prefer choosing cartridges separately, Culligan’s WH-S200-C housing is a strong alternative. Either way, confirm your cartridge size and compatibility before ordering.
